KME VSD Series

Variable Speed Drive Direct Driven 7.5÷15 kW

KME VSD

The KME VSD Series, direct driven with Inverter, always ensures the highest reliability in any work condition, minimizing power losses and guaranteeing a low noise level for each revolution and a perfect alignment of the rotating elements.

The KME VSD series entwines the benefits of a compact screw compressor, with low installation and management costs and excellent performance. Total function control through a user-friendly electronic board. Reduced overall dimensions and simplified installation are a winning card to overcome space problems. Cost savings are huge. There are no added installation charges for desiccant dryers and tank components, since they are wholly assembled. Air leakage from connection pipes is also absent.

KTC KME B

Features

COMPRESSOR AVAILABLE IN THE FOLLOWING VERSIONS:

(The unit on tank can be integrated with dryer even later on.)

KTC KME B on ground

ON GROUND

KTC KME B with drier

WITH DRYER

KME B on tank

ON TANK

KME B on tank with or without drier

ON TANK WITH DRYER

KTC high performance electric motor

HIGH PERFORMANCE ELECTRIC MOTOR (OPTIONAL)

The electric motor used by the compressor is a PREMIUM EFFICIENCY IE3: it guarantees compliance with the minimum efficiency requirements (MEPS) specified by the EU community. This first-class performance guarantees energy savings over time and the best in class reliability of a high standard certified product.



MOTOR CONTROL WITH INVERTER

MOTOR CONTROL WITH INVERTER

The Inverter technology characterizes the KME VSD series screw compressors.

The electric rotation speed regulation system of the air-end-engine group will follow the need of compressed air modifying the production depending on the request.

Therefore the best optimization of absorption of energy from the electric grid is achieved, in proportion to the production of compressed air required by the system.

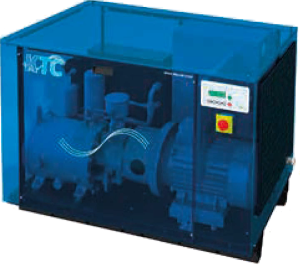

KTC airends all in one system

COMPACT AIR-ENDS INTEGRATED IN JUST ONE SYSTEM

Top-notch pumping system with Integrated unit guarantees extremely reduced overall dimensions grouping together, the following components:

  • Oil-injected air-end
  • Minimum pressure valve
  • Thermostatic valve
  • Intake valve
  • Tank separator
  •

These air-ends ensure little wear-and-tear, high efficiency, lost-lastingness and reliability.

KTC driving system

DRIVING SYSTEM

Direct-driven compressors with a 1:1 ratio. This means that the air-end and motor, directly connected via a coupling, rotate at the same speed. This not only reduces energy consumption and maintenance need, but it also decreases the level of noise. The use of high-efficiency motors* provide saving if compared to the performance of traditional compressors. * Combined with direct driven transmission.

KTC electronic control

ELECTRONIC CONTROL BOARD

Based on direct, user-friendly reading, it runs all the machine functions safely through a microprocessor, from control of safety alarms (oil temperature, electrical engine, control of cooling electrical fan, maintenance time) to command systems (startstop, alarm reset). The access to all microprocessor functions is protected by password (supplied only to authorized staff)



KTC air oil radiators

AIR-OIL RADIATORS

Package model, with a wide exchange surface, designed to maintain a low level of flows and air even in an environmental condition with high temperatures. Vacuum-brazed radiators in aluminum alloy with highly efficient tubular parts.

KTC system of air pre-filter and ventilation

SYSTEM OF AIR PRE-FILTER AND VENTILATION

The KME B series mounts a pre-filter that guarantees the utmost internal component protection, by filtering all the machine air intake. A high flow-rate electrical fan, almost noise-free, leads all the air flow into just one point, keeping up the right thermal balance for all the internal components.

KTC sound insulation

SOUND INSULATION

Use of closed-cell insulation panels, care in component assembly and absence of transmitted vibrations allow such a low noise level that you can install our compressor in any work environment.

KTC maintenance

MAINTENANCE

All internal parts are easily accessible without any operating difficulty. Replacement of oil-air filters and filter separators takes place by simply disassembling a panel, which is remarkably timesaving and cost-reducing

Product line

KME VSD A TERRA / GROUNDED

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Imballo
Package
Peso imballo
Package Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs L x D x H (cm) Kg Lbs
KME 7÷15 INVERTER A terra / Grounded
171051001C-01B KME 7 VSD 7,5 10 V75C / / 8 116 1215 42.9 69 400/50/3 1/2" Gas 89x66x65 155,5 343.8 99x79x65 174,5 384.7
171052001C-01B 10 145 1050 37.1
171053001C-01B 13 188 830 29.3
171061001-01B KME 11 VSD 11 15 V90 / / 8 116 1810 63.9 69 400/50/3 1/2" Gas 114x78x82 219 482.8 120x80x112 243,5 536.8
171062001-01B 10 145 1510 53.3
171063001-01B 13 188 1200 42.4
171071001-01B KME 15 VSD 15 20 V90 / / 8 116 2330 82.3 71 400/50/3 1/2" Gas 114x78x82 227 500.4 120x80x112 251,5 554.5
171072001-01B 10 145 2000 70.6
171073001-01B 13 188 1600 56.5

 *al 100% della potenza / at 100% of the power

KME VSD A TERRA CON ESSICCATORE / GROUNDED WITH DRYER

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Imballo
Package
Peso imballo
Package Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs L x D x H (cm) Kg Lbs
KME 7÷15 INVERTER A terra con essiccatore / Grounded with dryer
171051002C-01B KME 7 VSD 7,5 10 V75C / / 8 116 1215 42.9 69 400/50/3 1/2" Gas 127x66x65 187 412.3 155x85x107 206 454.2
171052002C-01B 10 145 1050 37.1
171053002C-01B 13 188 830 29.3
171061002-01B KME 11 VSD 11 15 V90 / / 8 116 1810 63.9 69 400/50/3 3/4" Gas 148x78x82 252,5 556.7 155x85x107 277 610.7
171062002-01B 10 145 1510 53.3
171063002-01B 13 188 1200 42.4
171071002-01B KME 15 VSD 15 20 V90 / / 8 116 2330 82.3 71 400/50/3 3/4" Gas 148x78x82 262,5 578.7 155x85x107 287 632.7
171072002-01B 10 145 2000 70.6
171073002-01B 13 188 1600 56.5

 *al 100% della potenza / at 100% of the power

KME 7 VSD


Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Imballo
Package
Peso Imballo
Package Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs L x D x H (cm) Kg Lbs
KME 7 INVERTER Su serbatoio / On tank
171051011C-01B KME 7 VSD
270
7,5 10 V75C 270 71.4 8 116 1215 42.9 69 400/50/3 1/2" Gas 156x66x123 236 520.3 152x76x183 255 562.2
171052011C-01B 10 145 1050 37.1
171053011C-01B 13 188 830 29.3 247 544.5 266 586.4
171051014C-01B KME 7 VSD
500
7,5 10 V75C 500 132 8 116 1215 42.9 69 400/50/3 1/2" Gas 196x66x132 279 615.1 202x85x190 298 657
171052014C-01B 10 145 1050 37.1
171053014C-01B 13 188 830 29.3 312 687.8 331 729.7
KME 7 INVERTER Su serbatoio con essiccatore / On tank with dryer
171051013C-01B KME 7 VSD
270/E
7,5 10 V75C 270 71.4 8 116 1215 42.9 69 400/50/3 1/2" Gas 156x66x123 267,5 589.7 152x76x183 286,5 631.6
171052013C-01B 10 145 1050 37.1
171053013C-01B 13 188 830 29.3 278,5 614 297,5 655.9

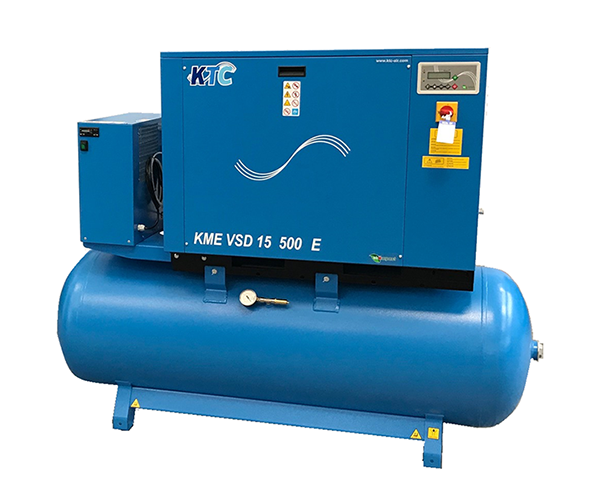

171051015C-01B KME 7 VSD
500/E
7,5 10 V75C 500 132 8 116 1215 42.9 69 400/50/3 1/2" Gas 196x66x132 310,5 684.5 202x85x190 329,5 726.4
171052015C-01B 10 145 1050 37.1
171053015C-01B 13 188 830 29.3 343,5 757.3 362,5 799.2

KME 11 VSD


Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Imballo
Package
Peso Imballo
Package Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs L x D x H (cm) Kg Lbs
KME 11 INVERTER Su serbatoio / On tank
171061003-01B KME 11 VSD
270
11 15 V90 270 71.4 8 116 1810 63.9 69 400/50/3 3/4" Gas 156x78x140 299,5 660.3 152x76x183 324 714.3
171062003-01B 10 145 1510 53.3
171063003-01B 13 188 1200 42.4 310,5 684.5 335 738.5
171061005-01B KME 11 VSD
500
11 15 V90 500 132 8 116 1810 63.9 69 400/50/3 3/4" Gas 204x78x149 342,5 755.1 202x85x190 367 809.1
171062005-01B 10 145 1510 53.3
171063005-01B 13 188 1200 42.4 375,5 827.8 400 881.8
KME 11 INVERTER Su serbatoio con essiccatore / On tank with dryer
171061004-01B KME 11 VSD
270/E
11 15 V90 270 71.4 8 116 1810 63.9 69 400/50/3 3/4" Gas 156x78x140 333 734.1 152x76x183 357,5 788.2
171062004-01B 10 145 1510 53.3
171063004-01B 13 188 1200 42.4 344 758.4 368,5 812.4
171061006-01B KME 11 VSD
500/E
11 15 V90 500 132 8 116 1810 63.9 69 400/50/3 3/4" Gas 204x78x149 376 828.9 202x85x190 400,5 883
171062006-01B 10 145 1510 53.3
171063006-01B 13 188 1200 42.4 409 901.7 433,5 955.7


 *al 100% della potenza / at 100% of the power

KME 15 VSD


Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Imballo
Package
Peso Imballo
Package Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs L x D x H (cm) Kg Lbs
KME 15 INVERTER su serbatoio / on tank
171071003-01B KME 15 VSD
270
11 15 V90 270 71.4 8 116 2330 82.3 71 400/50/3 3/4" Gas 156x78x140 307,5 677.9 156x75x178 320 705
171072003-01B 10 145 2000 70.6
171073003-01B 13 188 1600 56.5 318,5 702.7
171071005-01B KME 15 VSD
500
11 15 V90 500 132 8 116 2330 82.3 71 400/50/3 3/4" Gas 204x78x149 350,5 772.7 202x85x190 375 886.7
171072005-01B 10 145 2000 70.6
171073005-01B 13 188 1600 56.5 383,5 845.5 408 899.5
KME 15 INVERTER su serbatoio con essiccatore / on tank with dryer
171071004-01B KME 15 VSD
270/E
11 15 V90 270 71.4 8 116 2330 82.3 71 400/50/3 3/4" Gas 156x78x140 343  756.2  152x76x183 367,5  810.2
171072004-01B 10 145 2000 70.6
171073004-01B 13 188 1600 56.5 354 780.4 378,5 834.4
171071006-01B KME 15 VSD
500/E
11 15 V90 500 132 8 116 2330 82.3 71 400/50/3 3/4" Gas  204x78x149 386  851  202x85x190 410,5  905
171072006-01B 10 145 2000 70.6
171073006-01B 13 188 1600 56.5 419 923.7 443,5 977.7

*al 100% della potenza / at 100% of the power
