KTC KME C PLUS screw compressor

Description

The KME C PLUS series, a Poly-V belt-driven system with cast-iron taperhub pulleys, always ensures the highest reliability in any work condition, minimizing power losses and guaranteeing a low noise level for each revolution and a perfect alignment of the rotating elements.
Thanks to the system of sliding plate for the electric motor, the belt tightening process is made easier, allowing its accurate adjustment.
The KME C PLUS series entwines the benefits of a compact screw compressor, with low installation and management costs and excellent performance, mainly in the applications requiring continuous running.
Total function control through a user-friendly electronic board.
Reduced overall dimensions and simplified installation are a winning card to overcome space problems.
Cost savings are huge.
There are no added installation charges for desiccant dryers and tank components, since they are wholly assembled.
Air leakage from connection pipes is also absent.

Download

Download related documents

KTC sales terms (PDF 2.4 MB)

Product line

KME C 4-15 PLUS

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Serbatoio
Tank
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp Kw Lt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
KME C 4-15 PLUS A terra / Grounded
1610313X1 KME C 4 PLUS 5,5 4 / / 8 116 550 19,4 65 400/50/3 1/2 Gas 80x63x95 113 249
1610323X1 10 145 490 17,3
1610333X1 13 188 381 13,5
1610413X1 KME C 5 PLUS 7,5 5,5 / / 8 116 805 28,4 66 400/50/3 1/2 Gas 80x63x95 116 256
1610423X1 10 145 690 24,4
1610433X1 13 188 561 19,8
1610513X1 KME C 7 PLUS 10 7,5 / / 8 116 1170 39,8 67 400/50/3 1/2 Gas 80x63x95 159 350
1610523X1 10 145 980 33,4
1610533X1 13 188 785 26,7
1610613X1 KME C 11 PLUS 15 11 / / 8 116 1610 54,9 68 400/50/3 3/4 Gas 84x73x101 219 482
1610623X1 10 145 1462 49,9
1610633X1 13 188 1166 39,7
1610713X1 KME C 15 PLUS 20 15 / / 8 116 2090 73,8 68 400/50/3 3/4 Gas 84x73x101 228 502
1610723X1 10 145 1990 67,8
1610733X1 13 188 1600 56,5
KME C 01/04/15 PLUS A terra con essiccatore / Grounded with dryer
1610313X2 KME C 4 E PLUS 5,5 4 / / 8 116 550 19,4 65 400/50/3 1/2 Gas 106x63x95 146 322
1610323X2 10 145 490 17,3
1610333X2 13 188 381 13,5
1610413X2 KME C 5 E PLUS 7,5 5,5 / / 8 116 805 28,4 66 400/50/3 1/2 Gas 106x63x95 149 328
1610423X2 10 145 690 24,4
1610433X2 13 188 561 19,8
1610513X2 KME C 7 E PLUS 10 7,5 / / 8 116 1170 39,8 67 400/50/3 1/2 Gas 106x63x95 192 423
1610523X2 10 145 980 33,4
1610533X2 13 188 785 26,7
1610613X2 KME C 11 E PLUS 15 11 / / 8 116 1610 54,9 68 400/50/3 3/4 Gas 110x73x101 262 578
1610623X2 10 145 1462 49,9
1610633X2 13 188 1166 39,7
1610713X2 KME C 15 E PLUS 20 15 / / 8 116 2090 73,8 68 400/50/3 3/4 Gas 110x73x101 270 595
1610723X2 10 145 1990 67,8
1610733X2 13 188 1600 56,5



KME C 4-15 PLUS SERBATOIO/TANK

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Serbatoio
Tank
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp Kw Lt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
KME C 4-15 PLUS Su serbatoio / On tank
121031302 KME C 4/270 PLUS 5,5 4 270 71,33 8 116 550 19,4 65 400/50/3 1/2 Gas 149x60x147 240 529
121032302 10 145 490 17,3
121033302 13 188 381 13,5
121041302 KME C 5/270 PLUS 7,5 5,5 270 71,33 8 116 805 28,4 66 400/50/3 1/2 Gas 149x60x147 243 535
121042302 10 145 690 24,4
121043302 13 188 561 19,8
121041304 KME C 5/500 PLUS 7,5 5,5 500 132,1 8 116 805 28,4 66 400/50/3 1/2 Gas 190x60x156 283 623
121042304 10 145 690 24,4
121043304 13 188 561 19,8
121051302 KME C 7/270 PLUS 10 7,5 270 71,33 8 116 1170 39,8 67 400/50/3 1/2 Gas 149x60x147 286 617
121052302 10 145 980 33,4
121053302 13 188 785 26,7
121051304 KME C 7/500 PLUS 10 7,5 500 132,1 8 116 1170 39,8 67 400/50/3 1/2 Gas 190x60x156 326 718
121052304 10 145 980 33,4
121053304 13 188 785 26,7
121061302 KME C 11/270 PLUS 15 11 270 71,33 8 116 1610 54,9 68 400/50/3 3/4 Gas 149x69x152 297 654
121062302 10 145 1462 49,9
121063302 13 188 1166 39,7
121061304 KME C 11/500 PLUS 15 11 500 132,1 8 116 1610 54,9 68 400/50/3 3/4 Gas 190x69x161 337 742
121062304 10 145 1462 49,9
121063304 13 188 1166 39,7
121071302 KME C 15/270 PLUS 20 15 270 71,33 8 116 2090 73,8 68 400/50/3 3/4 Gas 149x69x152 306 674
121072302 10 145 1990 67,8
121073302 13 188 1600 56,5
121071304 KME C 15/500 PLUS 20 15 500 132,1 8 116 2090 73,8 68 400/50/3 3/4 Gas 190x69x161 347 765
121072304 10 145 1990 67,8
121073304 13 188 1600 56,5
KME C 4-15 PLUS Su serbatoio con essiccatore / On tank with dryer
121031303 KME C 4/270E PLUS 5,5 4 270 71,33 8 116 550 19,4 65 400/50/3 1/2 Gas 149x60x147 270 595
121032303 10 145 490 17,3
121033303 13 188 381 13,5
121041303 KME C 5/270E PLUS 7,5 5,5 270 71,33 8 116 805 28,4 66 400/50/3 1/2 Gas 149x60x147 273 601
121042303 10 145 690 24,4
121043303 13 188 561 19,8
121041305 KME C 5/500E PLUS 7,5 5,5 500 132,1 8 116 805 28,4 66 400/50/3 1/2 Gas 190x60x156 313 690
121042305 10 145 690 24,4
121043305 13 188 561 19,8
121051303 KME C 7/270E PLUS 10 7,5 270 71,33 8 116 1170 39,8 67 400/50/3 1/2 Gas 149x60x147 316 697
121052303 10 145 980 33,4
121053303 13 188 785 26,7
121051305 KME C 7/500E PLUS 10 7,5 500 132,1 8 116 1170 39,8 67 400/50/3 1/2 Gas 190x60x156 356 784
121052305 10 145 980 33,4
121053305 13 188 785 26,7
121061303 KME C 11/270E PLUS 15 11 270 71,33 8 116 1610 54,9 68 400/50/3 3/4 Gas 149x69x152 340 749
121062303 10 145 1462 49,9
121063303 13 188 1166 39,7
121061305 KME C 11/500E PLUS 15 11 500 132,1 8 116 1610 54,9 68 400/50/3 3/4 Gas 190x69x161 381 839
121062305 10 145 1462 49,9
121063305 13 188 1166 39,7
121071303 KME C 15/270E PLUS 20 15 270 71,33 8 116 2090 73,8 68 400/50/3 3/4 Gas 149x69x152 349 769
121072303 10 145 1990 67,8
121073303 13 188 1600 56,5
121071305 KME C 15/500E PLUS 20 15 500 132,1 8 116 2090 73,8 68 400/50/3 3/4 Gas 190x69x161 397 875
121072305 10 145 1990 67,8
121073305 13 188 1600 56,5



Features

THIS COMPRESSOR IS AVAILABLE IN THE FOLLOWING VERSIONS:

(The floor-standing unit can be integrated with a desiccant dryer and tank even later on.)

KTC KME C 11-15 PLUS on ground

ON GROUND

KTC KME C 11-15 plus with dryer

DESICCANT DRYER MOUNTED

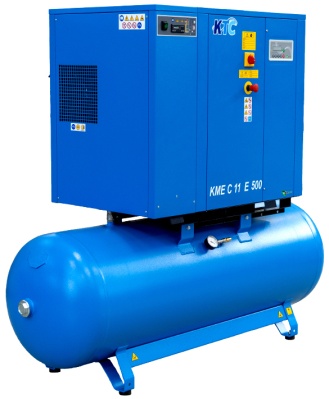

KTC KME C 11-15 PLUS with tank

TANK-MOUNTED WITH OR WITHOUT DRYER

KTC airends all in one system

COMPACT AIR-ENDS INTEGRATED IN JUST ONE SYSTEM

Top-notch pumping system with integrated unit guarantees extremely reduced overall dimensions:

  • Oil-injected air-end
  • Minimum pressure valve
  • Thermostatic valve
  • Intake valve
  • Tank separator

These air-ends ensure little wear-and-tear, high efficiency,
long-lastingness and reliability.

KTC high performance electric motor

HIGH PERFORMANCE ELECTRIC MOTOR

The electric motor used by the compressor is a PREMIUM EFFICIENCY IE3: it guarantees compliance with the minimum efficiency requirements (MEPS) specified by the EU community. This first-class performance guarantees energy savings over time and the best in class reliability of a high standard certified product

KTC driving system

DRIVING SYSTEM

Coupling of electrical engine with compression unit has to guarantee driving stability during a work phase.
The plate system with sliding electrical motor is designed to prevent stress to rotating parts.
Our machine availing itself of a Poly-V belt-driven system with cast-iron taper-hub pulleys, always ensures the utmost reliability in any work condition and limits power loss with low noise level of rotating elements together with their perfect alignment.
Moreover, an easy system of belt tightening, allows an accurate adjustment of the belt itself.

KTC electronic control

ELECTRONIC CONTROL BOARD

Based on direct, user-friendly reading, it runs all the machine functions safely through a microprocessor, from control of safety alarms (oil temperature, electrical engine, control of cooling electrical fan, maintenance time) to command systems (start-stop, alarm reset).
The access to all microprocessor functions is protected by password (supplied only to authorized staff).



KTC air oil radiators

AIR-OIL RADIATORS

Package model, with a wide exchange surface, designed to maintain a low level of flows and air even in an environmental condition with high temperatures.
Vacuum-brazed radiators in aluminium alloy with highly efficient tubular parts.

KTC system of air pre-filter and ventilation

SYSTEM OF AIR PRE FILTER AND VENTILATION

The KME C series mounts a pre-filter that guarantees the utmost internal component protection, by filtering all the machine air intake.
A high flow-rate electrical fan, almost noise-free, leads all the air flow into just one point, keeping up the right thermal balance for all the internal components.



KTC sound insulation

SOUND INSULATION

Use of closed-cell insulation panels, care in component assembly and absence of transmitted vibrations allow such a low noise level that you can install our compressor in any work environment.

KTC maintenance

MAINTENANCE

All internal parts are easily accessible without any operating difficulty.
Replacement of oil-air filters and filter separators takes place by simply disassembling a panel, which is remarkably timesaving and cost-reducing.

NOISE KEPT AT A MINIMUM

NOISE KEPT AT A MINIMUM

KLE D PLUS is fitted with a professional grade double thickness soundproofing foam with fire retardant and oil resistant characteristics for maximum protection and easy cleaning.
../uploaded_files/attachments/201706011496321271/ktc_logo_air_evolution.png

Accessories

KTC KME C PLUS touchscreen with Ktronic100

THE CONVENIENCE OF A KTRONIC 100 CONTROLLED TOUCH SCREEN

A KTRONIC 100 controlled touch screen is optionally available for the KME C PLUS series: performance and maintenance are easily monitored. The KTRONIC 100 makes remote monitoring of the compressor possible when an LAN connection is present. Energy savings are possible thanks to a builtin timer that allows adjustment of the working pressure around the clock. A log of the working state of the compressor is automatically kept providing invaluable data when optimizing the cost of compressed air.

KTC remote control and connectivity

REMOTE CONTROL AND CONNECTIVITY

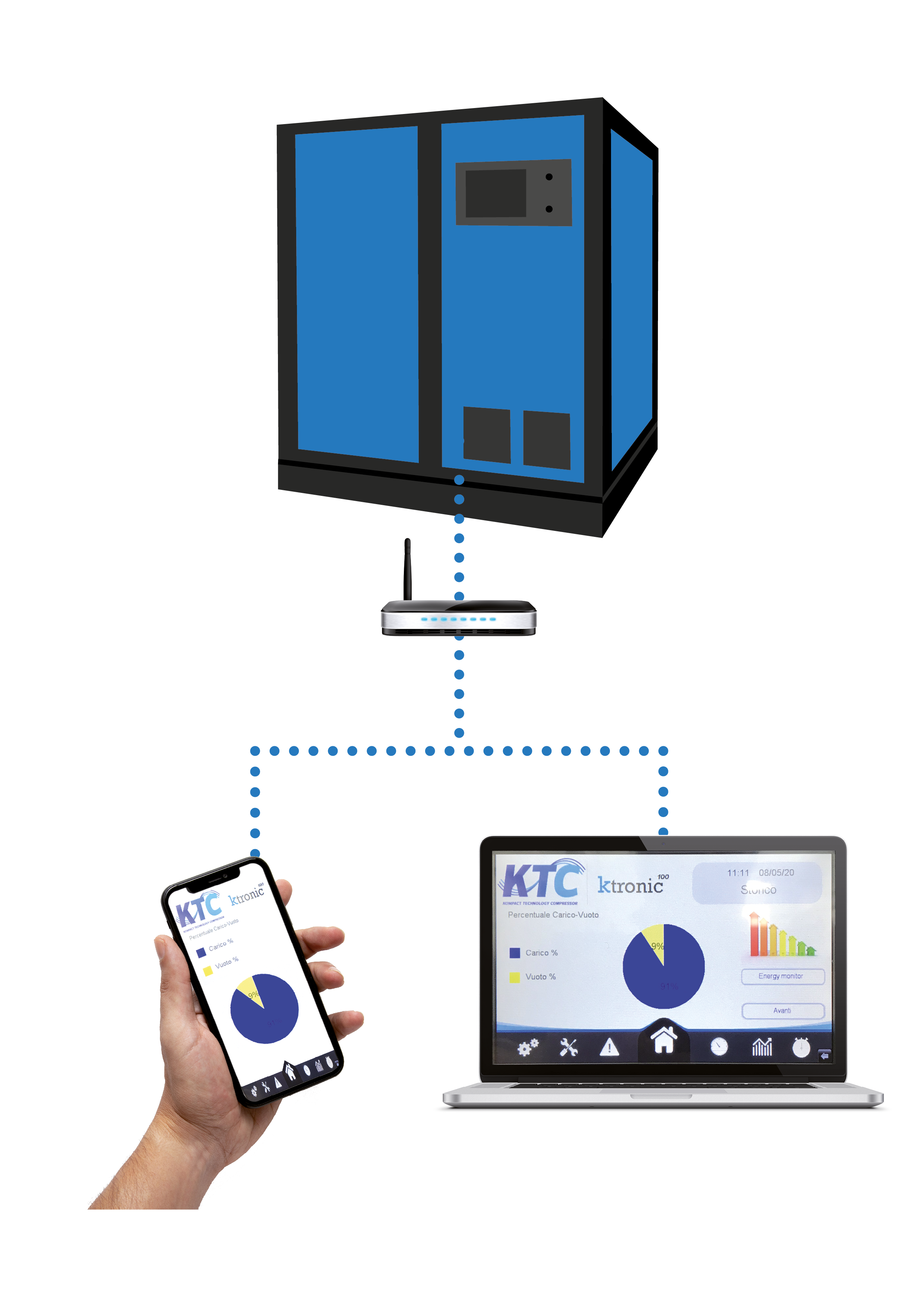

The KTRONIC 100 electronic controller can be connected to a LAN, doing so, allows monitoring and management of the compressor from a remote PC or smartphone. The USB port can be used to: export compressor’s data for in depth analysis, and to manage software updates.

KTC soft starter system

SOFT STARTER SYSTEM

The optional soft starter system controls effectively motor startup and acceleration providing smoother startups than conventional Start-Delta systems. The soft starter system improves startup by controlling the power delivered to the motor, thus increasing performance and reliability of the entire system.

KTC extended warranty

EXTENDED WARRANTY

KME C offers extended warranty packages to ensure that your compressor remains efficient: the packages SMART36m, SMART48m, and SMART60m provide coverage from three to five years. These are ideal when compressed air is an important part of your company’s processes. A specific maintenance program with dedicated kits, will assure easy and cost effective compressors’ maintenance. The extended warranties can be purchased with a simple one-time fee.
