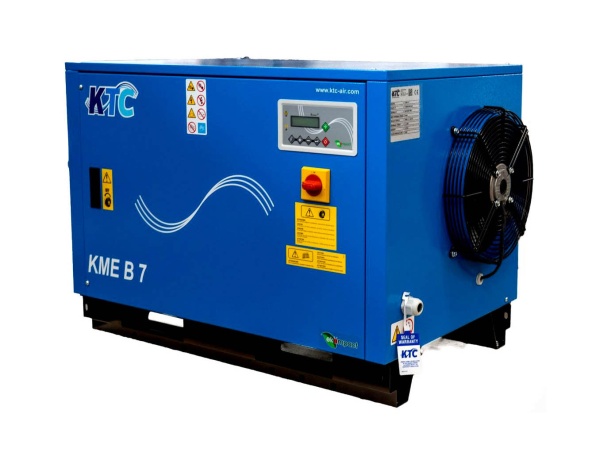

KME B Series

Poly-V Belt Driven 4÷15 kW

KME B

The KME B series, thanks to its groundbreaking patent for gear-driven systems with separate lubrication from the air-end leading to no loading leakage, offers greater reliability and longer lifecycle than traditional belt-driven systems.
Compression units are integrated in just one airend with the purpose of reducing overall dimensions, making installation easier and curtailing maintenance costs.
As a result of a great number of available configurations, it allows a wide cost-saving choice for each productive need.
Total function control through a user-friendly electronic board.
Reduced overall dimensions and simplified installation are a winning card to overcome space problems.
Cost savings are huge.
There are no added installation charges for desiccant dryers and tank components, since they are wholly assembled.
Air leakage from connection pipes is also absent.

KTC KME B

Features

COMPRESSOR AVAILABLE IN THE FOLLOWING VERSIONS:

(The unit on tank can be integrated with dryer even later on.)

KTC KME B on ground

ON GROUND

KTC KME B with drier

WITH DRYER

KME B on tank with or without drier

ON TANK WITH OR WITHOUT DRYER

KME B on tank with or without drier

ON TANK WITH DRYER

KTC airends all in one system

COMPACT AIR-ENDS INTEGRATED IN JUST ONE SYSTEM

Top-notch pumping system with Integrated unit guarantees extremely reduced overall dimensions grouping together, the following components:

  • Oil-injected air-end
  • Minimum pressure valve
  • Thermostatic valve
  • Intake valve
  • Tank separator
  •

These air-ends ensure little wear-and-tear, high efficiency, lost-lastingness and reliability.

KTC driving system

DRIVING SYSTEM

Coupling of electrical engine with compression unit has to guarantee driving stability during a work phase. The plate system with sliding electrical motor is designed to prevent stress to rotating parts. Our machine availing itself of a Poly-V belt-driven system with cast-iron taper-hub pulleys, always ensures the utmost reliability in any work condition and limits power loss with low noise level of rotating elements together with their perfect alignment. Moreover, an easy system of belt tightening, allows an accurate adjustment of the belt itself.

KTC electronic control

ELECTRONIC CONTROL BOARD

Based on direct, user-friendly reading, it runs all the machine functions safely through a microprocessor, from control of safety alarms (oil temperature, electrical engine, control of cooling electrical fan, maintenance time) to command systems (startstop, alarm reset). The access to all microprocessor functions is protected by password (supplied only to authorized staff)



KTC air oil radiators

AIR-OIL RADIATORS

Package model, with a wide exchange surface, designed to maintain a low level of flows and air even in an environmental condition with high temperatures. Vacuum-brazed radiators in aluminum alloy with highly efficient tubular parts.

KTC system of air pre-filter and ventilation

SYSTEM OF AIR PRE-FILTER AND VENTILATION

The KME B series mounts a pre-filter that guarantees the utmost internal component protection, by filtering all the machine air intake. A high flow-rate electrical fan, almost noise-free, leads all the air flow into just one point, keeping up the right thermal balance for all the internal components.

KTC sound insulation

SOUND INSULATION

Use of closed-cell insulation panels, care in component assembly and absence of transmitted vibrations allow such a low noise level that you can install our compressor in any work environment.

KTC maintenance

MAINTENANCE

All internal parts are easily accessible without any operating difficulty. Replacement of oil-air filters and filter separators takes place by simply disassembling a panel, which is remarkably timesaving and cost-reducing

Product line

KME B 4÷15 A TERRA / GROUNDED

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
KME B 4÷15 A terra / Grounded
190031001 KME B 4 4 5.5 V60 / / 8 116 550 19.4 65 400/50/3 1/2" Gas 98x62x65 140 308.6
190032001 10 145 490 17.3
190033001 13 188 381 13.5
190041001 KME B 5 5,5 7.5 V60 / / 8 116 805 28.4 66 400/50/3 1/2" Gas 98x62x65 148 326.3
190042001 10 145 690 24.4
190043001 13 188 561 19.8
190051001 KME B 7 7,5 10 V60 / / 8 116 1170 41.3 67 400/50/3 1/2" Gas 98x62x65 148 326.3
190052001 10 145 980 34.6
190053001 13 188 785 27.7
190061001 KME B 11 11 15 V75 / / 8 116 1610 56.8 68 400/50/3 3/4" Gas 116x74x82 224 493.8
190062001 10 145 1462 51.6
190063001 13 188 1166 41.2
190071001 KME B 15 15 20 V75 / / 8 116 2090 73.8 68 400/50/3 3/4" Gas 116x74x82 234 515.9
190072001 10 145 1990 70.3
190073001 13 188 1600 56.5



KME B 4÷15 A TERRA CON ESSICCATORE / GROUNDED WITH DRYER





Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
KME B 4÷15 A terra con essiccatore / Grounded with dryer
190031002 KME B 4 E 4 5.5 V60 / / 8 116 550 19.4 65 400/50/3 1/2" Gas 135x62x65 170,5 375.9
190032002 10 145 490 17.3
190033002 13 188 381 13.5
190041002 KME B 5 E 5,5 7.5 V60 / / 8 116 805 28.4 66 400/50/3 1/2" Gas 135x62x65 178,5 393.5
190042002 10 145 690 24.4
190043002 13 188 561 19.8
190051002 KME B 7 E 7,5 10 V60 / / 8 116 1170 41.3 67 400/50/3 1/2" Gas 135x62x65 179,5 395.7
190052002 10 145 980 34.6
190053002 13 188 785 27.7
190061002 KME B 11 E 11 15 V75 / / 8 116 1610 56.8 68 400/50/3 3/4" Gas 151x73x82 257,5 567.7
190062002 10 145 1462 51.6
190063002 13 188 1166 41.2
190071002 KME B 15 E 15 20 V75 / / 8 116 2090 73.8 68 400/50/3 3/4" Gas 151x73x82 269,5 594.1
190072002 10 145 1990 70.3
190073002 13 188 1600 56.5



KME B 4÷15 SU SERBATOIO / ON TANK

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi ℓ/min C.F.M.  dB[A]     L x D x H (cm) Kg Lbs
KME B 4÷15 Su serbatoio / On tank
190031003 KME B 4 270 4 5.5 V60 270 71.4 8 116 550 19.4 65 400/50/3 1/2" Gas 156x62x123 220,5 486.1
190032003 10 145 490 17.3
190033003 13 188 381 13.5 231,5 510.4
190041003 KME B 5 270 5,5 7.5 V60 270 71.4 8 116 805 28.4 66 400/50/3 1/2" Gas 156x62x123 228,5 503.8
190042003 10 145 690 24.4
190043003 13 188 561 19.8 239,5 528.0
190041005 KME B 5 500 5,5 7.5 V60 500 132 8 116 805 28.4 66 400/50/3 1/2" Gas 197x62x132 271,5 598.6
190042005 10 145 690 24.4
190043005 13 188 561 19.8 304,5 671.3
190051003 KME B 7 270 7,5 10 V60 270 71.4 8 116 1170 41.3 67 400/50/3 1/2" Gas 156x62x123 228.5 503.8
190052003 10 145 980 34.6
190053003 13 188 785 27.7 239,5 528
190051005 KME B 7 500 7,5 10 V60 500 132 8 116 1170 41.3 67 400/50/3 1/2" Gas 197x62x132 271,5 598.6
190052005 10 145 980 34.6
190053005 13 188 785 27.7 304,5 671.3
190061003 KME B 11 270 11 15 V75 270 71.4 8 116 1610 56.8 68 400/50/3 3/4" Gas 156x73x140 304,5 671.3
190062003 10 145 1462 51.6
190063003 13 188 1166 41.2 315,5 695.6
190061005 KME B 11 500 11 15 V75 500 132 8 116 1610 56.8 68 400/50/3 3/4" Gas 197x73x149 347,5 766.1
190062005 10 145 1462 51.6
190063005 13 188 1166 41.2 380,5 838.9
190071003 KME B 15 270 15 20 V75 270 71.4 8 116 2090 73.8 68 400/50/3 3/4" Gas 156x73x140 314,5 693.4
190072003 10 145 1990 70.3
190073003 13 188 1600 56,5 325,5 717.6
190071005 KME B 15 500 15 20 V75 500 132 8 116 2090 73.8 68 400/50/3 3/4" Gas 197x73x149 357,5 788.2
190072005 10 145 1990 70.3
190073005 13 188 1600 56.5 390,5 860.9



KME B 4÷15 SU SERBATOIO CON ESSICCATORE / ON TANK WITH DRYER

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    kW hp   Gal Lt Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
KME B 4÷15 Su serbatoio con essiccatore/ On tank with dryer
190031004 KME B 4 270E 4 5.5 V60 270 71.4 8 116 550 19.4 65 400/50/3 1/2" Gas 156x62x123 251 553.4
190032004 10 145 490 17.3
190033004 13 188 381 13.5 262 577.6
190041004 KME B 5 270E 5,5 7.5 V60 270 71.4 8 116 805 28.4 66 400/50/3 1/2" Gas 156x62x123 259 571
190042004 10 145 690 24.4
190043004 13 188 561 19.8 270 595.2
190041006 KME B 5 500E 5,5 7.5 V60 500 132 8 116 805 28.4 66 400/50/3 1/2" Gas 197x62x132 302 665.8
190042006 10 145 690 24.4
190043006 13 188 561 19.8 335 738.5
190051004 KME B 7 270E 7,5 10 V60 270 71.4 8 116 1170 39.8 67 400/50/3 1/2" Gas 156x62x123 260 573.2
190052004 10 145 980 34.6
190053004 13 188 785 26.7 271 597.5
190051006 KME B 7 500E 7,5 10 V60 500 132 8 116 1170 39.8 67 400/50/3 1/2" Gas 197x62x132 303 668
190052006 10 145 980 34.6
190053006 13 188 785 26.7 336 740.8
190061004 KME B 11 270E 11 15 V75 270 71.4 8 116 1610 54.9 68 400/50/3 3/4" Gas 156x73x140 338 745.2
190062004 10 145 1462 49.9
190063004 13 188 1166 39.7 349 769.4
190061006 KME B 11 500E 11 15 V75 500 132 8 116 1610 54.9 68 400/50/3 3/4" Gas 197x73x149 381 840
190062006 10 145 1462 49.9
190063006 13 188 1166 39.7 414 912.7
190071004 KME B 15 270E 15 20 V75 270 71.4 8 116 2090 73.8 68 400/50/3 3/4" Gas 156x73x140 350 771.6
190072004 10 145 1990 67.8
190073004 13 188 1600 56.5 361 795.9
190071006 KME B 15 500E 15 20 V75 500 132 8 116 2090 73.8 68 400/50/3 3/4" Gas 197x73x149 393 866.4
190072006 10 145 1990 67.8
190073006 13 188 1600 56.5 426 939.2
