PRODUCT LINE

KLE VSD PLUS SERIES
KLE VSD PLUS 11÷55   CodiceCode ModelloType Potenza MotoreMotor Power ViteScrew Pressione MaxMax. Pressure Portata AriaAir Flow-rate L. SonoroSound L. VoltVoltage AttaccoConnection DimensioniDimensions PesoWeight     kW hp   Bar Psi ?/min C.F.M./min ?/max C.F.M./max dB[A]     L x D x H (cm) Kg Lbs 131061342 KLE 11 PLUS 11 15 V90 8 116 430 15.2 1810 63.9 64 400/50/3 3/4" Gas 138x68x120 363 800.28 131062342 10 145 540 19.1 1510 53.3 131063342 13 188 640  22.6 1200 42.4 131071342 KLE 15 PLUS 15 20 V90 8 116 410  14.5 2330  82.3 65 400/50/3 3/4" Gas 138x68x120 373 822.32 131072342 10 145 390  13.8 2000 70.6 131073342 13 188 530  18.7 1600 56.5 131081342C KLE 18 PLUS 18 25 V110C 8 116 700  24.7 2920 103.1 66 400/50/3 1-1/4" Gas 166x76x142 556 1225.8 131082342C 10 145 1050  37.1 2560  90.4 131083342C 13 188 1130  39.9 2230 78.7 131091342C KLE 22 PLUS 22 30 V110C 8 116 940 33.2 3500 123.6 66 400/50/3 1-1/4" Gas 166x76x142 601 1325 131092342C 10 145 940  33.2 3000 105.9 131093342C 13 188 1148  40.5 2420 85.5 131101342C KLE 30 PLUS 30 40 V110C 8 116 940  33.2 4710 166.3  66 400/50/3 1-1/4" Gas 166x76x142 657 1448.4 131102342C 10 145 940  33.2 4060  143.4 131103342C 13 188 1050  37.1 3370  119 131111342 KLE 37 PLUS 37 50 V130 8 116 1400  49.4 6370 224.9  68 400/50/3 1-1/2" Gas 194x107x180 984 2169.3 131112342 10 145 1900 67.1 5610  198.1 131113342 13 188 2100  74.2 4770  168.4 131121342 KLE 45 PLUS 45 60 V130 8 116 1400 49.4 7500  264.8 69 400/50/3 1-1/2" Gas 194x107x180 1057 2330.3 131122342 10 145 2210  78 6700 236.6 131123342 13 188 2190  77.3 5800 204.8 131131342 KLE 55 PLUS 55 75 V150 8 116 1700  60 9000  317.8 70 400/50/3 1-1/2" Gas 194x107x180 1215 2678.6 131132342 10 145 1650  58.3 8000 282.5  131133342 13 188 2035  71.9 6500  229.5

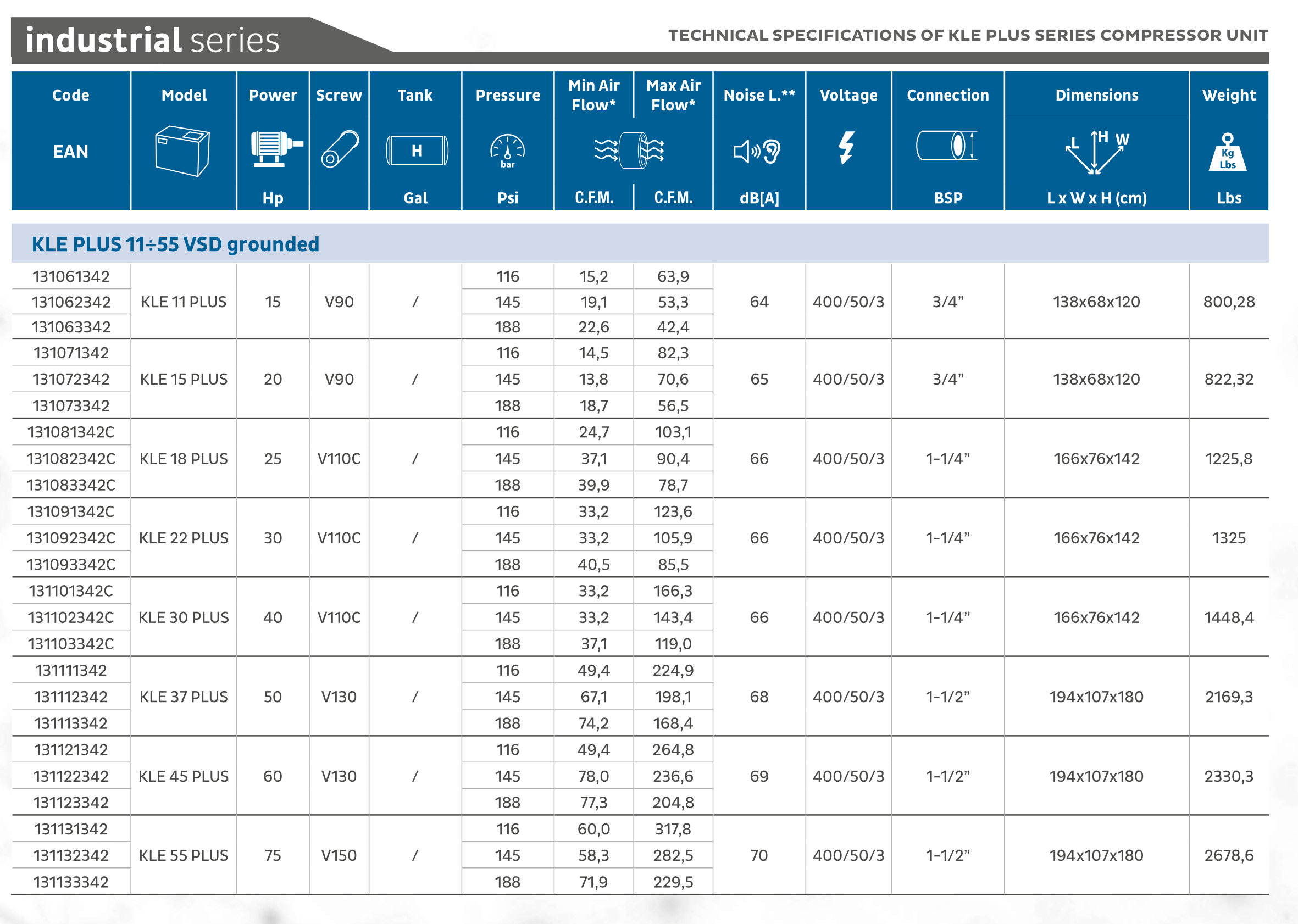

KLE VSD PLUS 11÷55


Codice
Code		 Modello
Type		 Potenza Motore
Motor Power		 Vite
Screw		 Pressione Max
Max. Pressure		 Portata Aria
Air Flow-rate		 L. Sonoro
Sound L.		 Volt
Voltage		 Attacco
Connection		 Dimensioni
Dimensions		 Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    kW hp   Bar Psi ?/min C.F.M./min ?/max C.F.M./max dB[A]     L x D x H (cm) Kg Lbs
131061342 KLE 11 PLUS 11 15 V90 8 116 430 15.2 1810 63.9 64 400/50/3 3/4" Gas 138x68x120 363 800.28
131062342 10 145 540 19.1 1510 53.3
131063342 13 188 640  22.6 1200 42.4
131071342 KLE 15 PLUS 15 20 V90 8 116 410  14.5 2330  82.3 65 400/50/3 3/4" Gas 138x68x120 373 822.32
131072342 10 145 390  13.8 2000 70.6
131073342 13 188 530  18.7 1600 56.5
131081342C KLE 18 PLUS 18 25 V110C 8 116 700  24.7 2920 103.1 66 400/50/3 1-1/4" Gas 166x76x142 556 1225.8
131082342C 10 145 1050  37.1 2560  90.4
131083342C 13 188 1130  39.9 2230 78.7
131091342C KLE 22 PLUS 22 30 V110C 8 116 940 33.2 3500 123.6 66 400/50/3 1-1/4" Gas 166x76x142 601 1325
131092342C 10 145 940  33.2 3000 105.9
131093342C 13 188 1148  40.5 2420 85.5
131101342C KLE 30 PLUS 30 40 V110C 8 116 940  33.2 4710 166.3  66 400/50/3 1-1/4" Gas 166x76x142 657 1448.4
131102342C 10 145 940  33.2 4060  143.4
131103342C 13 188 1050  37.1 3370  119
131111342 KLE 37 PLUS 37 50 V130 8 116 1400  49.4 6370 224.9  68 400/50/3 1-1/2" Gas 194x107x180 984 2169.3
131112342 10 145 1900 67.1 5610  198.1
131113342 13 188 2100  74.2 4770  168.4
131121342 KLE 45 PLUS 45 60 V130 8 116 1400 49.4 7500  264.8 69 400/50/3 1-1/2" Gas 194x107x180 1057 2330.3
131122342 10 145 2210  78 6700 236.6
131123342 13 188 2190  77.3 5800 204.8
131131342 KLE 55 PLUS 55 75 V150 8 116 1700  60 9000  317.8 70 400/50/3 1-1/2" Gas 194x107x180 1215 2678.6
131132342 10 145 1650  58.3 8000 282.5
131133342 13 188 2035  71.9 6500  229.5
