KLE D PLUS Series

Direct Drive Series 18÷45 kW

KLE D PLUS

The KLE D PLUS series, direct driven, guarantees important and cutting-edge advantages in virtue of KTC’s development in engineering and pioneering technology and is embodied by a compact, easy-to-use system, occupying just a modest amount of space, with a noticeable power efficiency and a significant long lifecycle. Total function control through a user-friendly electronic board. Extremely low noise levels as well as reduced maintenance costs and times. Direct driven system and hi-efficiency motor ensuring the highest reliability in any work condition. Reduced overall dimensions and simplified installation are a winning card to overcome space problems.

KTC KLE D PLUS

Features

KTC airends all in one system

COMPACT AIR-ENDS INTEGRATED IN JUST ONE SYSTEM

Manufactured with the objective of an efficient and long-lasting steady performance, all of our air-ends guarantee a better air flow rate with minimum energy consumption. equipped with wear and-tear resistant bearings and highly sophisticated machined components, these air-ends make an extremely low level of noise during their work phase and require very low maintenance costs. Top-notch pumping system with integrated unit allows extremely reduced overall dimensions, grouping together the following components:

  • Oil-injected air-end
  • Minimum pressure valve
  • Thermostatic valve
  • Intake valve
  • Tank separator



KTC high performance electric motor

HIGH PERFORMANCE ELECTRIC MOTOR

The electric motor used by the compressor is a PREMIUM EFFICIENCY IE3: it guarantees compliance with the minimum efficiency requirements (MEPS) specified by the EU community. This first-class performance guarantees energy savings over time and the best in class reliability of a high standard certified product

KTC driving system

DRIVING SYSTEM

Direct-driven compressors with a 1:1 ratio.
This means that the airend and motor, directly connected via a coupling, rotate at the same speed.
This not only reduces energy consumption and maintenance need, but it also decreases the level of noise.
The use of high efficiency motors and the possibility of adjusting the energy consumption to the actual air intake provides an over 20% yearly saving if compared to the performance of traditional compressors.



INDUSTRY 4.0 READY

INDUSTRY 4.0 READY

Ready for Industry 4.0.
Unit can be equipped with advanced touch-screen display controller
K-TRONIC100,
allowing web remote control and monitoring by devices (smartphone, PC, laptop, tablet etc.).

KTC air oil radiators

AIR-OIL RADIATORS

Package model, with a wide exchange surface, designed to maintain a low level of flows and air even in an environmental condition with high temperatures.
Vacuum-brazed radiators in aluminium alloy with highly efficient tubular parts.

KTC system of air pre-filter and ventilation

SYSTEM OF AIR PRE FILTER

Engineered to be easily disassembled and cleaned, this component is of vital importance for a long-lasting air intake filter maintenance and air-end performance.



KTC noise kept at a minimum

NOISE KEPT AT A MINIMUM

KLE D PLUS is fitted with a professional grade double thickness soundproofing foam with fire retardant and oil resistant characteristics for maximum protection and easy cleaning.

KTC maintenance

MAINTENANCE

All internal parts are easily accessible without any operating difficulty.
Replacement of oil-air filters and filter separators takes place by simply disassembling a panel, which is remarkably timesaving and cost-reducing.

KTC electronic control

ELECTRONIC CONTROL BOARD

Based on direct, user-friendly reading, it runs all the machine functions safely through a microprocessor, from control of safety alarms (oil temperature, electrical engine, control of cooling electrical fan, maintenance time) to command systems (start-stop, alarm reset). The access to all microprocessor functions is protected by password (supplied only to authorized staff).



Product line

KLE D 18÷45 PLUS

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max. Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    kW hp   Lt Gal Bar Psi /min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
KLE D 18÷45 PLUS Trasmissione diretta / Direct Drive

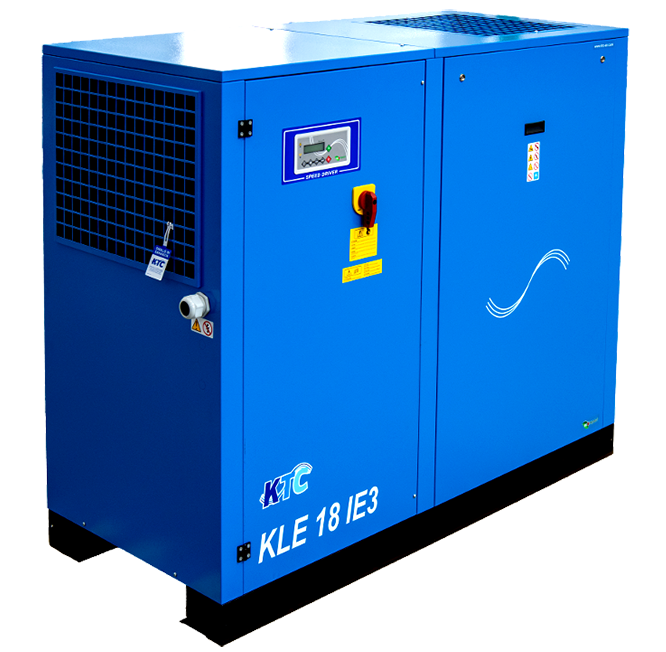

131081301 KLE D 18 PLUS 18 25 V90 / / 8 116 2780 98.2 67 400/50/3 1-1/4" Gas 166x76x142 310 683.43
131082301 10 145 2380 84
131112301 KLE D 37 PLUS 37 50 V130 / / 10 145 4870 172 67 400/50/3 1-1/2” Gas 194x107x180 870 1978
131121301 KLE D 45 PLUS 45 60 V150 / / 8 116 6650 234.8 68 400/50/3 1-1/2” Gas 194x107x180 950 2094.3

Accessories

KTC touchscreen with Ktronic100

THE CONVENIENCE OF A KTRONIC 100 CONTROLLED TOUCH SCREEN

A KTRONIC 100 controlled touch screen is optionally available for the KLE D PLUS series: performance and maintenance are easily monitored. The KTRONIC 100 makes remote monitoring of the compressor possible when an LAN connection is present. Energy savings are possible thanks to a built-in timer that allows adjustment of the working pressure around the clock. A log of the working state of the compressor is automatically kept providing invaluable data when optimizing the cost of compressed air.

KTC remote control and connectivity

REMOTE CONTROL AND CONNECTIVITY

The KTRONIC 100 electronic controller can be connected to a LAN, doing so, allows monitoring and management of the compressor from a remote PC or smartphone. The USB port can be used to: export compressor’s data for in depth analysis, and to manage software updates.

KTC SOFT STARTER SYSTEM

SOFT STARTER SYSTEM

The optional soft starter system controls effectively motor startup and acceleration providing smoother startups than conventional Start-Delta systems. The soft starter system improves startup by controlling the power delivered to the motor, thus increasing performance and reliability of the entire system.
