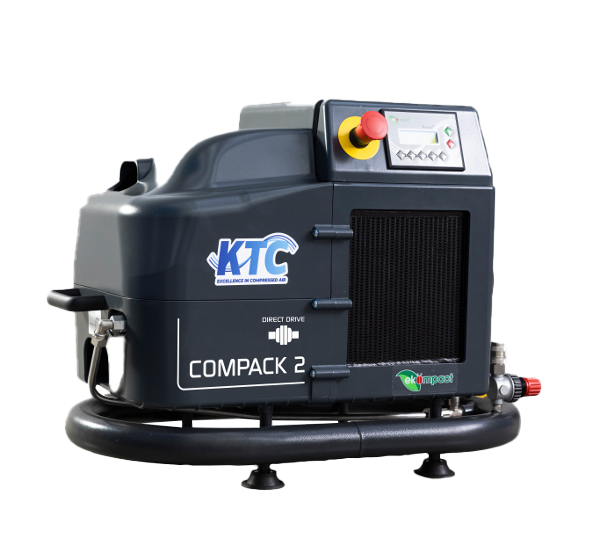

KTC screw compressor COMPACK series

Description

Just one standard: excellence

COMPACK embodies the greatest KTC’s technological innovation.
KTC’S Research and Development Dept. oriented towards the greatest user-friendliness of a screw compressor fulfills this approach with COMPACK, thanks to a great number of customized applications and solutions.
The reason is that COMPACK has just one standard: excellence.
COMPACK as a matter of fact is a compact and extremely performing integrated system: all the advantages of an industrial compressor in just a small amount of space.

Integrated system

COMPACK is made up of a state-of-the-art pumping air-end, the most compact in the field, integrating the main components of a screw compressor (air-end, separator tank, thermostatic and minimum pressure valve, intake valve) and being groundbreaking in the choice of materials: a steel core in an aluminum case.

KTC COMPACK infographics

Download

Download related documents

Product line

COMPACK 2 ECO

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp Kw Lt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
COMPACK 2 ECO A terra / Grounded
180012045

COMPACK 2 ECO 3 2,7 V50 2,5 0.66 10 145 240 8,5 65 230/50/1 QUICK CONNECTOR 67x40x47 46 101.4
COMPACK 2 ECO A terra / Grounded
180012046 COMPACK 2 ECO /90  3 2,7 V50 90 23,7 10  145  240  8,5  65  230/50/1 1/2 Gas 120x45x90  75 165
COMPACK 2 ECO Air Trolley
180012047 COMPACK 2 ECO Air Trolley 3 2,7 V50 2,5 0,66 10 145 270 9,5 65 230/50/1 QUICK CONNECTOR 67x55x61 52 114,6



COMPACK 2 Special

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp Kw Lt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
COMPACK 2 Special A terra / Grounded
180012039

COMPACK 2 Special 3 2,2 V50 2,5 0.66 10 145 270 9,5 65 230/50/1 QUICK CONNECTOR 67x40x47 46 101.4
180012041

3 2,2 V50 290 10,2 65 400/50/1 67x40x47 46 101.4
COMPACK 2 Special Su serbatoio / On tank
180012042 COMPACK 2 SPECIAL / 90 3 2,2 V50 90 23,7 10  145  270  9,5  65  230/50/1 1/2 Gas 116x44x88  78 171,9
180012040 4,1 3 V60 290  10,2  65  400/50/3
COMPACK 2 Special Air Trolley
180012043 COMPACK 2 Special Trolley 3 2,2 V50 2,5 0,66 10 145 270 9,5 65 230/50/1 QUICK CONNECTOR 67x55x61 52 114,5
180012044 4,1 3 V60 290 10,2 400/50/3



COMPACK 3


Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor powerSerbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp KwLt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
COMPACK 3 A terra / Grounded
180022001 COMPACK 3 4,7 3,5 V60 / / 10 145 360 12,7 69 400/50/3 3/8 Gas 55x43x62 45 99,2
COMPACK 3 su serbatoio / on tank
180022020 COMPACK 3 / 90 4,7 3,5 V60 90  23,8 10  145  360 12,7 69 400/50/3 1/2 Gas 116x44x88  77 169,8
COMPACK 3 Trolley
151022004 COMPACK 3 Trolley 4,7 3,5 V60 1,85 10  145  360 12,7 69 400/50/3 3/8 Gas 74x62x70  71 156,5



COMPACK 4-5 Trasmissione a cinghia / Belt Drive


Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor powerSerbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp KwLt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
COMPACK 4-7 A terra / Grounded
180031001 COMPACK 4 5,5 4 V60 / / 8 116 580 20,5 68 400/50/3 1/2 Gas 75x64x63 97 213,8
180032001 10 145 460 16,25
180033001 13 188 370 13,1
180041001 COMPACK 5 7,5 5,5 V60 / / 8 116 760 26,8 69 400/50/3 1/2 Gas 75x64x63 102 224,9
180042001 10 145 650 23
180043001 13 188 560 19,8
180051001 COMPACK 7 10 7,5 V60 / / 8 116 1050 37,1 69 400/50/3 1/2 Gas 93x64x63 116 255,7
180052001 10 145 900 31,8
180053001 13 188 750 26,5
COMPACK 4-7 a terra con essiccatore / on ground with dryer
180031002 COMPACK 4 E 5,5 4 V60 / / 8 116 580 20,5 68 400/50/3 1/2 Gas 112x64x63 124,5 274,5
180032002 10 145 460 16,25
180033002 13 188 370 13,1
180041002 COMPACK 5 E 7,5 5,5 V60 / / 8 116 760 26,8 69 400/50/3 1/2 Gas 112x64x63 129,5 285,5
180042002 10 145 650 23
180043002 13 188 560 18,8
180051002 COMPACK 7 E 10 7,5 V60 / / 8 116 1050 37,1 69 400/50/3 1/2 Gas 130x64x63 147,5 325,2
180052002 10 145 900 31,8
180053002 13 188 750 26,5
COMPACK 4-7 Su serbatoio / On tank
180031003 COMPACK 4/270 5,5 4 V60 270 71,33 8 116 580 20,5 68 400/50/3 1/2 Gas 156x64x120 177,5 391,3
180032003 10 145 460 16,25
180033003 13 188 370 13,1 188,5 415,6
180041003 COMPACK 5/270 7,5 5,5 V60 270 71,33 8 116 760 26,8 69 400/50/3 1/2 Gas 156x64x120 182,5 402,3
180042003 10 145 650 23
180043003 13 188 560 19,8 193,5 426,6
180051003 COMPACK 7/270 10 7,5 V60 270 71,33 8 116 1050 37,1 69 400/50/3 1/2 Gas 156x64x120 196,5 433,2
180052003 10 145 900 31,8
180053003 13 188 750 36,5
180051005 COMPACK 7/500 10 7,5 V60 500 132,09 8 116 1050 37,1 69 400/50/3 1/2 Gas 197x64x120 239,5 528,0
180052005 10 145 900 31,8
180053005 13 188 750 26,5
COMPACK 4-7 Su serbatoio con essiccatore / On tank with dryer
180031004 COMPACK 4/270E 5,5 4 V60 270 71,33 8 116 580 20,5 68 400/50/3 1/2 Gas 156x64x120 205 451,9
180032004 10 145 460 16,25
180033004 13 188 370 13,1 97 213,8
180041004 COMPACK 5/270E 7,5 5,5 V60 270 71,33 8 116 760 26,8 69 400/50/3 1/2 Gas 156x64x120 210 463,0
180042004 10 145 650 23
180043004 13 188 560 18,8
180051004 COMPACK 7/270E 10 7,5 V60 270 71,33 8 116 1050 37,1 68 400/50/3 1/2 Gas 156x64x120 228 502,7
180052004 10 145 900 31,8
180053004 13 188 750 26,5
180051006 COMPACK 7/500E 10 7,5 V60 500 132.09 8 116 1050 37,1 69 400/50/3 1/2 Gas 197x64x120 271 597,5
180052006 10 145 900 31,8
180053006 13 188 750 26,5



COMPACK 4-5 VSD Velocità variabile con trasmissione a cinghia / Variable speed belt drive


Codice
Code
Modello
Type
Potenza Motore
Motor Power
Vite
Screw
Serbatoio
Tank
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Serbatoio - Tank Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp Kw Lt Gal Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
COMPACK 5-7 INVERTER A terra / Grounded
183041001 COMPACK 5 VSD 7,5 5,5 V60 / / 8 116 780 27,51 69 400/50/3 1/2 Gas 75x64x63 110 242,5
183042001 10 145 680 24,00
183043001 13 188 590 20,80
183051001 COMPACK 7 VSD 10 7,5 V60 / / 8 116 1050 37,1 71 400/50/3 1/2 Gas 93x64x63 124 273,4
183052001 10 145 900 31,8
183053001 13 188 750 26,5
COMPACK 5-7 INVERTER a terra con essiccatore / on ground with dryer
183041002 COMPACK 5 VSD E 7,5 5,5 V60 / / 8 116 780 27,51 69 400/50/3 1/2 Gas 100x64x63 132,5 292,1
183042002 10 145 680 24,00
183043002 13 188 590 20,80
183051002 COMPACK 7 VSD E 10 7,5 V60 / / 8 116 1050 37,1 69 400/50/3 1/2 Gas 127x64x63 155,5 342,8
183052002 10 145 900 31,8
183053002 13 188 750 26,5
COMPACK 5-7 INVERTER Su serbatoio / On tank
183041003 COMPACK 5 VSD 270 7,5 5,5 V60 270 71,33 8 116 780 27,5 69 400/50/3 1/2 Gas 156x64x120 190,5 419,9
183042003 10 145 680 24,0
183043003 13 188 590 20,8 201,5 444,2
183051003 COMPACK 7 VSD 270 10 7,5 V60 270 71,33 8 116 1050 27,5 71 400/50/3 1/2 Gas 156x64x120 204,5 450,8
183052003 10 145 900 24,0
183053003 13 188 750 20,8 215,5 475,1
183051005 COMPACK 7 VSD 500 10 7,5 V60 500 132,09 8 116 1050 27,5 71 400/50/3 1/2 Gas 197x64x120 247,5 545,6
183052005 10 145 900 24,0
183053005 13 188 750 20,8 280,5 618,4
COMPACK 5-7 INVERTER Su serbatoio con essiccatore / On tank with dryer
183041004 COMPACK  5 VSD 270E 7,5 5,5 V60 270 71,33 8 116 780 27,5 69 400/50/3 1/2 Gas 156x64x120 213 469,5
183042004 10 145 680 24,0
183043004 13 188 590 20,8 224 493,8
183051004 COMPACK  7 VSD 270E 10 7,5 V60 270 71,33 8 116 1050 37,1 71 400/50/3 1/2 Gas 156x64x120 236 520,2
183052004 10 145 900 31,8
183053004 13 188 750 26,5 247 544,5
183051006 COMPACK  7 VSD 500E 10 7,5 V60 500 132,09 8 116 1050 37,1 71 400/50/3 1/2 Gas 197x64x120 279 615
183052006 10 145 900 31,8
183053006 13 188 750 26,5 312 687,8



Models

AVAILABLE VERSIONS

KTC Compack compressor only

COMPRESSOR ONLY

KTC compack on tank

ON AIR TROLLEY FRAME

KTC compack air trolley

ON TANK (90 LT)

On ground, on ground with dryer, on tank, on tank with dryer

On ground, on ground with dryer, on tank, on tank with dryer

KTC compack bus 2 kw

COMPACK 2 ECO

COMPACK 2 ECO is the ON - OFF ENTRY LEVEL screw compressor with the smallest pumping unit on the market managing automatic load/unload cycle. Compack 2 ECO is the best alternative to the piston compressor with the characteristics of an industrial compressor. Available versions on 2,5 lt, 90 lt tank and Air Trolley with single phase motor

  • PACK SMART V50
  • ON-OFF WITH MANAGEMENT OF LOAD/UNLOAD CYCLE
  • LATEST-GENERATION ELECTRIC MOTOR “MADE IN ITALY”
  • DIRECT DRIVE MAINTENANCE FREE
  • ACCESS PORTHOLE FOR EASY MAINTENANCE
  • OIL HEAT EXCHANGER
KTC compack bus 2 kw

COMPACK 2 Special

Compack 2 special is the screw compressor with the smallest pumping unit on the market. Thanks to the electronic controller K-Tronic 5 is equipped with all the features typical of bigger sizes machines by managing the load/unload cycles automatically. Available versions on 2,5 lt, 90 lt tank and Air Trolley with single and three phases motor

  • PACK SMART V50
  • ELECTRONIC CONTROLLER K-TRONIC 5
  • LATEST-GENERATION ELECTRIC MOTOR “MADE IN ITALY”
  • DIRECT DRIVE MAINTENANCE FREE
  • ACCESS PORTHOLE FOR EASY MAINTENANCE
  • OIL HEAT EXCHANGER
KTC compack 2-3 kw

COMPACK 3 KW

COMPACK 3 stands for an authentic revolution in the field, exploiting the technical and technological standards of an industrial screw compressor on the markets using normally a piston compressor. Thanks to the Heating System that eliminates the condensate problem, COMPACK is also designed to run discontinuously. Moreover it guarantees energy efficiency if compared to a piston compressor with the same airflow rate.

  • PACK SMART V60
  • ELECTRONIC CONTROLLER K-TRONIC 5
  • LATEST-GENERATION ELECTRIC MOTOR “MADE IN ITALY”
  • HIGH EFFICIENCY AND LOW NOISE COOLING FAN
  • DIRECT DRIVE
  • OIL HEAT EXCHANGER
KTC compack 2-3 kw

COMPACK 4÷7 kW

It represents the COMPACK range maximum evolution, thanks to the electronic control unit K-tronic 5 managing all the compressor functions: load/unload cycle, working hours, oil temperature, working pressure, alarms. This is a concrete answer to users in the field of compressed air requiring a powerful, small footprint machine. Available grounded, grounded with dryer, with tank, with tank and dryer.

  • PACK SMART V60L
  • ELECTRONIC CONTROLLER K-TRONIC 5
  • LATEST-GENERATION STAR-DELTA ELECTRIC MOTOR “MADE IN ITALY”
  • HIGH EFFICIENCY AND LOW NOISE COOLING FAN
  • POLY-V BELT DRIVE
  • AIR-OIL HEAT EXCHANGER
KTC compack 2-3 kw

COMPACK 5÷7 kW VSD

COMPACK VSD is the variable speed version of the COMPACK range that adopts the advanced electronic controller K-tronic 10 managing all the functions of the compressor. The airend-motor group electronic RPM adjustment system will self-regulate according to the compressed air needed in the net by modifying the air delivery according to the request.

  • PACK SMART V60L
  • ELECTRONIC CONTROLLER K-TRONIC 10
  • LATEST-GENERATION ELECTRIC MOTOR “MADE IN ITALY”
  • TOP CLASS FREQUENCY INVERTER
  • HIGH EFFICIENCY AND LOW NOISE COOLING FAN
  • POLY-V BELT DRIVE
  • AIR-OIL HEAT EXCHANGER
KTC compack plus

Plus

COMPACK stands for an authentic revolution in the field, leveraging the technical and technological standards of an industrial screw compressor on the markets which until some time ago were exclusively a prerogative of a piston compressor.
Thanks to the Heating System that eliminates the condensate problem, COMPACK is also designed to run discontinuously, that is at fixed intervals.
Moreover, in terms of the same quantity of air released, it guarantees energy efficiency if compared to a piston compressor with the same airflow rate.

  • Greatest energy efficiency
  • Designed as a big compressor
  • Cooling circuit
  • Best performance in just a small amount of space
  • Anti-condensation system
  • Low noise levels
  • Turnkey products with an aluminum case
  • Fast and economical maintenance
  • Electronic control board - ON/OFF system
KTC white logo on blue background

THE TRUE EVOLUTION OF TECHNOLOGICAL INNOVATION

KTC represents an authentic evolution in the world of screw compressors.
