A WIDE RANGE

OF SCREW COMPRESSORS

FOR SMALL AND MEDIUM POWER
Check our families

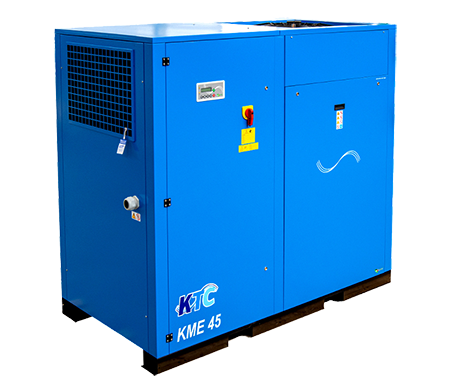

KME PLUS Series

Poly-V belt driven 18-55 kW

../uploaded_files/attachments/201610131476365145/plus_icons.png
KTC KME PLUS

Description

The KME PLUS series, Poly V-belt-driven, guarantees important and cutting-edge advantages in virtue of KTC’s development in engineering and pioneering technology and is embodied by a compact, easy-to-use system, occupying just a modest amount of space, with a noticeable power efficiency and a significant long lifecycle.
Total function control through a user-friendly electronic board.
Extremely low noise levels as well as reduced maintenance costs and times.
A Poly-V belt-driven system and cast-iron taper-hub pulleys ensuring the highest reliability in any work condition.
Reduced overall dimensions and simplified installation are a winning card to overcome space problems.

Extremely compact, grounded, small-footprint compressor.

Special care has been given to the design of the compressor internal structure.
The motor and the main running parts of the compressor are fixed to a unique load-bearing frame with anti-vibration elements that isolate all the running components from the rest of the structure and remain free from any fastenings to external panels of noise insulation.

Download

Download related documents

KTC sales terms (PDF 2.4 MB)

Product line

KME 18-37 PLUS Trasmissione a cinghia / Belt Drive

Codice
Code
Modello
Type
Potenza Motore
Motor Power
Pressione Max
Max .Pressure
Portata Aria
Air Flow-rate
L. Sonoro
Sound L.
Volt
Voltage
Attacco
Connection
Dimensioni
Dimensions
Peso
Weight
Codice - Code Modello - Type Potenza motore - Motor power Pressione max - Max Pressure Portata aria - Air flow rate Livello sonoro - Sound Level Voltaggio - Voltage Attacco - Connection Dimensioni - Dimensions Peso - Weight
    Hp Kw Bar Psi ℓ/min C.F.M. dB[A]     L x D x H (cm) Kg Lbs
KME 18-55 PLUS A Terra / Grounded
1210813X1 KME 18 PLUS 25 18,5 8 116 2880 101,7 69 400/50/3 1"1/4 106x86x124 375 826
1210823X1 10 145 2540 89,7
1210833X1 13 188 1920 68
1210913X1 KME 22 PLUS 30 22 8 116 3440 121,5 69 400/50/3 1"1/4 106x86x124 427 941
1210923X1 10 145 3020 106,7
1210933X1 13 188 2460 86,9
1211013X1 KME 30 PLUS 40 30 8 116 4730 167 70 400/50/3 1"1/4 106x86x124 460 1013
1211023X1 10 145 4210 148,7
1211033X1 13 188 3310 116,9
1211113X1 KME 37 PLUS 50 37 8 116 5700 201 70 400/50/3 1"1/2 195x107x180 960 1124
1211123X1 10 145 5000 176
1211133X1 13 188 4250 150
1211213X1 KME 45 PLUS 60 45 8 116 7150 252 70 400/50/3 1"1/2 195x107x180 1070 2560
1211223X1 10 145 6200 219
1211233X1 13 188 5300 187
1211313X1 KME 55 PLUS 75 55 8 116 8625 304 70 400/50/3 1"1/2 195x107x180 1220 2690
1211323X1 10 145 7500 265
1211333X1 13 188 6375

Features

KTC airends all in one system

COMPACT AIR-ENDS INTEGRATED IN JUST ONE SYSTEM

Manufactured with the objective of an efficient and long-lasting steady performance, all of our air-ends guarantee a better air flowrate with minimum energy consumption. Equipped with wearand-tear resistant bearings and highly sophisticated machined components and these air-ends make an extremely low level of noise during their work phase and require very low maintenance costs.
Top-notch pumping system with integrated unit allows extremely reduced overall dimensions, grouping together the following components: Oil-injected air-end, Minimum pressure valve, Thermostatic valve, Intake valve, Tank separator.

KTC high performance electric motor

HIGH PERFORMANCE ELECTRIC MOTOR

The electric motor used by the compressor is a PREMIUM EFFICIENCY IE3: it guarantees compliance with the minimum efficiency requirements (MEPS) specified by the EU community. This first-class performance guarantees energy savings over time and the best in class reliability of a high standard certified product.



KTC driving system

DRIVING SYSTEM

Coupling of electrical engine with compression unit has to guarantee driving stabililty during a work phase.
The plate system with a sliding electrical motor is designed to prevent stress to rotating parts.
Our machine, availing itself of a poly-v belt-driven system with cast-iron taper-hub pulleys, always ensures the utmost reliability in any work condition and limits power loss with low noise level of rotating elements together with their perfect alignment.
Moreover, an easy system of belt tightening allows an accurate adjustment of the belt itself.

KTC electronic control

ELECTRONIC CONTROL BOARD

Based on direct, user-friendly reading, it runs all the machine functions safely through a microprocessor, from control of safety alarms (oil temperature, electrical engine, control of cooling electrical fan, maintenance time) to command systems (start-stop, alarm reset).
The access to all microprocessor functions is protected by password (supplied only to authorized staff).

KTC air oil radiators

AIR-OIL RADIATORS

Package model, with a wide exchange surface, designed to maintain a low level of flows and air even in an environmental condition with high temperatures.
Vacuum-brazed radiators in aluminium alloy with highly efficient tubular parts.

KTC system of air pre-filter and ventilation

SYSTEM OF AIR PRE FILTER

Engineered to be easily disassembled and cleaned, this component is of vital importance for a long-lasting air intake filter maintenance and air-end performance.

KTC noise kept at a minimum

NOISE KEPT AT A MINIMUM

KME PLUS is fitted with a professional grade double thickness soundproofing foam with fire retardant and oil resistant  characteristics for maximum protection and easy cleaning..
MAINTENANCE

MAINTENANCE

All internal parts are easily accessible without any operating difficulty.
Replacement of oil-air filters and filter separators takes place by simply disassembling a panel, which is remarkably timesaving and cost-reducing.

../uploaded_files/attachments/201706011496321472/ktc_logo_air_evolution.png

Accessories

KTC touchscreen with Ktronic100

THE CONVENIENCE OF A KTRONIC 100 CONTROLLED TOUCH SCREEN

A KTRONIC 100 controlled touch screen is optionally available for the KME C PLUS series: performance and maintenance are easily monitored. The KTRONIC 100 makes remote monitoring of the compressor possible when
an LAN connection is present. Energy savings are possible thanks to a built-in timer that allows adjustment of the working pressure around the clock. A log of the working state of the compressor is automatically kept providing invaluable data when optimizing the cost of compressed air.

KTC remote control and connectivity

REMOTE CONTROL AND CONNECTIVITY

The KTRONIC 100 electronic controller can be connected to a LAN, doing so, allows monitoring and management of the compressor from a remote PC or smartphone. The USB port can be used to: export compressor’s data for in depth analysis, and to manage software updates.

KTC soft starter system

SOFT STARTER SYSTEM

The optional soft starter system controls effectively motor startup and acceleration
providing smoother startups than conventional Start-Delta systems. The soft
starter system improves startup by controlling the power delivered to the motor,
thus increasing performance and reliability of the entire system.

KTC extended warranty

EXTENDED WARRANTY

KME C offers extended warranty packages to ensure that your compressor remains efficient: the packages SMART36m, SMART48m, and SMART60m provide coverage from three to five years. These are ideal when compressed air is an important part of your company’s processes. A specific maintenance program with dedicated kits, will assure easy and cost effective compressors’ maintenance. The extended warranties can be
purchased with a simple one-time fee.

KTC white logo on blue background

THE TRUE EVOLUTION OF TECHNOLOGICAL INNOVATION

KTC represents an authentic evolution in the world of screw compressors.
