KLE D PLUS series

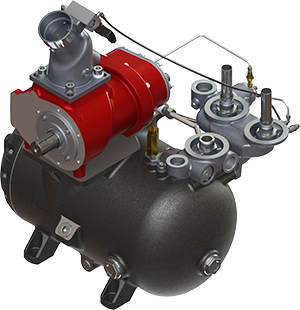

COMPACT AIR-ENDS INTEGRATED IN JUST ONE SYSTEM

Manufactured with the objective of an efficient and long-lasting steady performance, all of our air-ends guarantee a better air flow rate with minimum energy consumption. equipped with wear and-tear resistant bearings and highly sophisticated machined components, these air-ends make an extremely low level of noise during their work phase and require very low maintenance costs.

Top-notch pumping system with integrated unit allows extremely reduced overall dimensions, grouping together the following components:
  • Oil-injected air-end
  • Minimum pressure valve
  • Thermostatic valve
  • Intake valve
  • Tank separator

HIGH PERFORMANCE ELECTRIC MOTOR

The electric motor used by the compressor is a PREMIUM EFFICIENCY IE3: it guarantees compliance with the minimum efficiency requirements (MEPS) specified by the EU community.



This first-class performance guarantees energy savings over time and the best in class reliability of a high standard certified product.




DRIVING SYSTEM

Direct-driven compressors with a 1:1 ratio.
This means that the airend and motor, directly connected via a coupling, rotate at the same speed.
This not only reduces energy consumption and maintenance need, but it also decreases the level of noise.
The use of high efficiency motors and the possibility of adjusting the energy consumption to the actual air intake provides an over 20% yearly saving if compared to the performance of traditional compressors.

INDUSTRY 4.0 READY

Ready for Industry 4.0.

Unit can be equipped with advanced touch-screen display controller

K-TRONIC100, allowing web remote control and monitoring by devices (smartphone, PC, laptop, tablet etc.).

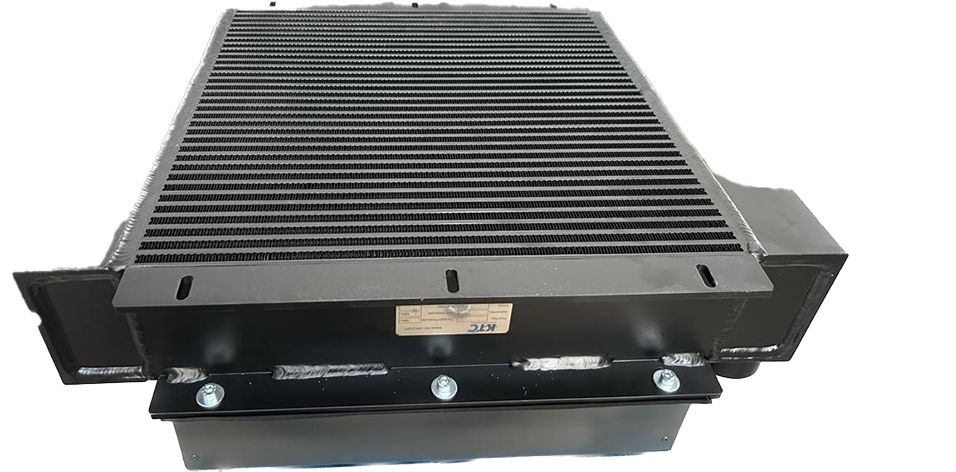

AIR-OIL RADIATORS

Package model, with a wide exchange surface, designed to maintain a low level of flows and air even in an environmental condition with high temperatures.

Vacuum-brazed radiators in aluminium alloy with highly efficient tubular parts.



SYSTEM OF AIR PRE FILTER

Engineered to be easily disassembled and cleaned, this component is of vital importance for a long-lasting air intake filter maintenance and air-end performance.





NOISE KEPT AT A MINIMUM

KLE D PLUS is fitted with a professional grade double thickness soundproofing foam with fire retardant and oil resistant characteristics for maximum protection and easy cleaning.






MAINTENANCE

All internal parts are easily accessible without any operating difficulty.

Replacement of oil-air filters and filter separators takes place by simply disassembling a panel, which is remarkably timesaving and cost-reducing.







ELECTRONIC CONTROL BOARD

Based on direct, user-friendly reading, it runs all the machine functions safely through a microprocessor, from control of safety alarms (oil temperature, electrical engine, control of cooling electrical fan, maintenance time) to command systems (start-stop, alarm reset).



The access to all microprocessor functions is protected by password (supplied only to authorized staff).
